ASTM A500 Welded Steel Pipe
ASTM A500/A501 Welded Steel Pipe
The ASTM A500 and ASTM A501 specifications cover cold-formed and hot-formed welded and seamless carbon steel structural tubing, respectively. These specifications are commonly used in construction and structural applications due to their strength, durability, and versatility.
ASTM A500: Cold-Formed Welded and Seamless Carbon Steel Structural Tubing
Scope and Application
- Scope: ASTM A500 covers cold-formed welded and seamless carbon steel tubing in round, square, rectangular, and special shapes.
- Application: Primarily used in construction and structural applications, including building frames, bridges, and other structures requiring high strength and durability.
Grades and Types
- Grades: ASTM A500 includes Grades A, B, C, and D, each with different strength and chemical composition requirements.
- Shapes: Tubing can be round, square, rectangular, or special shapes.
Chemical Composition
| Element | Grade A (max) | Grade B (max) | Grade C (max) | Grade D (max) |
|---|---|---|---|---|
| Carbon (C) | 0.26% | 0.30% | 0.23% | 0.18% |
| Manganese (Mn) | 1.35% | 1.35% | 1.35% | 1.40% |
| Phosphorus (P) | 0.035% | 0.035% | 0.035% | 0.030% |
| Sulfur (S) | 0.035% | 0.035% | 0.035% | 0.030% |
| Copper (Cu) | 0.20% (min) | 0.20% (min) | 0.20% (min) | 0.20% (min) |
Mechanical Properties
| Property | Grade A | Grade B | Grade C | Grade D |
|---|---|---|---|---|
| Yield Strength (min) | 39 ksi (270 MPa) | 46 ksi (317 MPa) | 50 ksi (345 MPa) | 36 ksi (250 MPa) |
| Tensile Strength (min) | 45 ksi (310 MPa) | 58 ksi (400 MPa) | 62 ksi (427 MPa) | 58 ksi (400 MPa) |
| Elongation (min) | 25% | 23% | 21% | 23% |
ASTM A501: Hot-Formed Welded and Seamless Carbon Steel Structural Tubing
Scope and Application
- Scope: ASTM A501 covers hot-formed welded and seamless carbon steel tubing in round, square, rectangular, and special shapes.
- Application: Similar to ASTM A500, used in construction and structural applications requiring high strength and toughness.
Grades
- Grades: ASTM A501 does not have specific grades like A500 but provides general requirements for mechanical and chemical properties.
Chemical Composition
| Element | Hot-Formed Tubing (max) |
|---|---|
| Carbon (C) | 0.26% |
| Manganese (Mn) | 1.35% |
| Phosphorus (P) | 0.035% |
| Sulfur (S) | 0.035% |
| Copper (Cu) | 0.20% (min) |
Mechanical Properties
| Property | Hot-Formed Tubing |
|---|---|
| Yield Strength (min) | 36 ksi (250 MPa) |
| Tensile Strength (min) | 58 ksi (400 MPa) |
| Elongation (min) | 23% |
Dimensional Specifications
Outer Diameter (OD) and Wall Thickness
- Outer Diameter (OD): Ranges from 1/2 inch to 24 inches.
- Wall Thickness: Varies depending on the size and shape of the tubing.
| Shape | Size Range |
|---|---|
| Round | 1/2 inch to 24 inches |

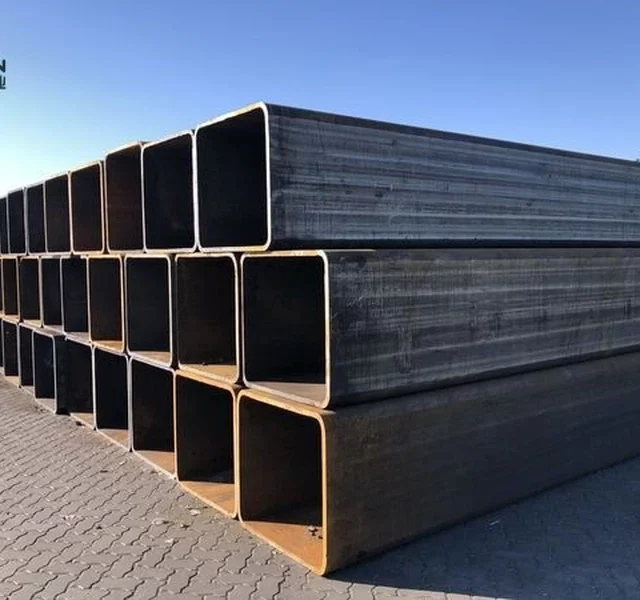

| Square | 1/2 inch x 1/2 inch to 16 inches x 16 inches |

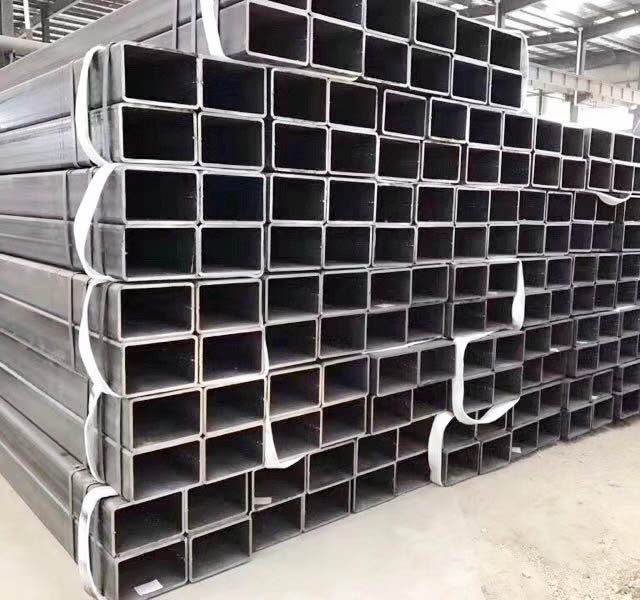

| Rectangular | 1 inch x 1/2 inch to 20 inches x 12 inches |
Manufacturing Process
Cold-Formed (ASTM A500)
- Cold-Forming: Steel is formed at room temperature into the desired shape, followed by welding (typically electric resistance welding).
- Seamless Cold-Formed Tubing: Produced by piercing a solid round billet and then rolling it into a tube shape.
Hot-Formed (ASTM A501)
- Hot-Forming: Steel is heated to a high temperature and then formed into the desired shape. This process can involve seamless or welded methods.
- Seamless Hot-Formed Tubing: Produced by hot rolling a solid round billet into a tube.
Testing and Inspection
Both ASTM A500 and A501 specifications require rigorous testing and inspection to ensure the quality and performance of the steel tubing.
Mechanical Tests
- Tensile Test: Determines the yield strength, tensile strength, and elongation of the material.
- Flattening Test: Ensures that the tubing can withstand deformation without cracking.
- Bending Test: Verifies the ductility of the tubing.
- Hardness Test: Measures the hardness of the steel to ensure it meets the specified requirements.
Non-Destructive Tests
- Ultrasonic Testing: Detects internal flaws or imperfections within the tubing.
- Eddy Current Testing: Identifies surface and near-surface defects.
- Hydrostatic Testing: Checks for leaks and ensures the tubing can withstand specified pressure levels.
Dimensional and Visual Inspection
- Dimensional Checks: Ensure the outer diameter, wall thickness, and length meet specified tolerances.
- Visual Inspection: Identifies surface defects such as cracks, dents, or weld defects.
Marking and Certification

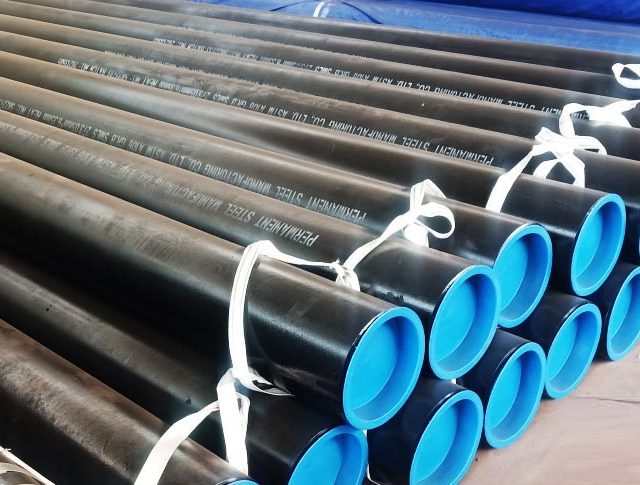

Each pipe produced under ASTM A500 and A501 standards must be properly marked for traceability and compliance. The marking typically includes:
- Manufacturer’s Name or Trademark
- Specification and Grade (e.g., ASTM A500 Grade B)
- Heat Number or Batch Number
- Dimensions (e.g., OD, wall thickness, and length)
- Production Date or Code
Additionally, pipes are accompanied by a certificate that confirms compliance with the specified standard and includes test results and inspection reports.
Installation and Maintenance Considerations
General Considerations
- Handling and Storage: Protect pipes from damage and corrosion during handling and storage. Store in a dry environment and off the ground.
- Cutting and Welding: Use appropriate techniques for cutting and welding to prevent damage and ensure proper joint integrity.
High-Temperature Applications
- Thermal Expansion: Account for thermal expansion and contraction. Install expansion joints or loops to accommodate changes in pipe length due to temperature variations.
- Insulation: Use suitable insulation materials to maintain process temperature and protect personnel.
- Corrosion Protection: Apply and maintain protective coatings to prevent oxidation and scaling at high temperatures.
Low-Temperature Applications
- Brittle Fracture Prevention: Use materials with good toughness at low temperatures. Avoid sharp notches and stress concentrators.
- Insulation: Proper insulation is necessary to maintain temperatures and prevent condensation and icing.
- Thermal Contraction: Design the system to accommodate shrinkage and avoid excessive stress on joints and supports.
