Трубный переходник – Концентрические и эксцентрические
Abter company carries a wide range of concentric and eccentric reducers.
Dimensional tolerances conform to ASME B16.9. Fitting wall thicknesses conform with standard schedule SCH10，Щ20，Щ30，СТД,Щ40，Щ60，Щ80，Щ100，Щ120，SCH160 and ASME B36.19M wall pipe.
Butt welding fittings are permanently marked by electro-chemical etching in accordance with ASME B16.9. Estimated fitting weights are based on a density of .163 lbs/cubic inch.
A steel pipe reducer is the component in a pipeline that decreases the pipe size to a smaller bore. There are two main types of reducer: concentric and eccentric reducer. Some pipe reducers are manufactured by means of punch forming and others by bending, extruding, pushing, molding or machining.
The steel pipe reducer is used when liquid flow increases or decreases in small quantities. In order to prevent cavitation, it is also used to connect to the inlet hole of pump. Besides, it is also useful to connect joints in instrument like flow meter and control valve. The steel reducer also finds applications in sugar mills and distilleries, лакированные бальные туфли, нефтехимический, cement and construction industries and steel plants. It can be stored in fumigation-free boxes or wooden holders.
Сырье
* A234 – WPB WP5, WP9, WP11, WP22
* A420 – WPL3/ WPL6
* A403 – WP304/L; WP316/L
* A860-WPHY 42-46/52-60/65-70
Special Materials such as Monel, Inconel, Cu-Ni, Duplex SS etc are available on request
Specifications of the Steel Pipe Reducer
| Тип | |||
| Seamless Reducer | Weld Reducer | Butt Welding Reducer | |
| Внешний диаметр | 1/2″ ～ 24″ | 4″ ～ 24″ | 12″ ～ 78″ |
| Толщина стены | 3 мм ～ 150 мм | ||
| Тип продукта | Concentric reducer, eccentric reducer | ||
Standard Available
Our company provides steel pipe reducers of different standards to meet requirements of customers.
ГБ/T12459-2005 ГБ/T13401-2005 ГБ/T10752-2005
СХ/Т3408-1996 СХ/Т3409-1996
СИ/Т0518-2002 СИ/Т0510-1998
ДЛ/Т695-1999 ГД2000 ГД87-1101
ХГ/Т21635-1987 ХГ/Т21631-1990
ASME B16.9-2007 ASME B16.25-2007
МСС СП 75-2008
CSA Z245.11-05-2005
EN10253-1-1999 EN10253-2-2007 EN10253-3-2008 EN10253-4-2008
DIN2605-1-1992 DIN2605-2-1995
BS1640-1-1962 BS1640-2-1962 BS1640-3-1968 BS1640-4-1968 BS1965-1-1963
АФНОР НФ А 49-289-1990 АФНОР НФ А 49-170-1-1999 АФНОР НФ А 49-170-2-2009 АФНОР НФ А 49-170-3-2009 АФНОР НФ А 49-170-4-2009
ИСО3419-1981 ИСО5251-1981
JIS B2311-2009 JIS B2312-2009 JIS B2313-2009
buttweld-Reducer
| Номинальный диаметр | Внешний диаметр | End to End | ||
| D1*D2 | ||||
| DN | НПС | Series A | Serices B | ЧАС |
| 20×15 | 3/4×1/2 | 26.9×21.3 | 25×18 | 38 |
| 20×10 | 3/4×3/8 | 26.9×17.3 | 25×14 | 38 |
| 25×20 | 1×3/4 | 33.7×26.9 | 32×25 | 51 |
| 25×15 | 1×1/2 | 33.7×21.3 | 32×18 | 51 |
| 32×25 | 1.1/4×1 | 42.4×33.7 | 38×32 | 51 |
| 32×20 | 1.1/4×3/4 | 42.4×26.9 | 38×25 | 51 |
| 32×15 | 1.1/4×1/2 | 42.4×21.3 | 38×18 | 51 |
| 40×32 | 1.1/2×1.1/4 | 48.3×42.4 | 45×38 | 64 |
| 40×25 | 1.1/2×1 | 48.3×33.7 | 45×32 | 64 |
| 40×20 | 1.1/2×3/4 | 48.3×26.9 | 45×25 | 64 |
| 40×15 | 1.1/2×1/2 | 48.3×21.3 | 45×18 | 64 |
| 50×40 | 2×1.1/2 | 60.3×48.3 | 57×45 | 76 |
| 50×32 | 2×1.1/4 | 60.3×42.4 | 57×38 | 76 |
| 50×25 | 2×1 | 60.3×33.7 | 57×32 | 76 |
| 50×20 | 2×3/4 | 60.3×26.9 | 57×25 | 76 |
| 65×50 | 2.1/2×2 | 73.0×60.3 | 76×57 | 89 |
| 65×40 | 2.1/2×1.1/2 | 73.0×48.3 | 76×45 | 89 |
| 65×32 | 2.1/2×1.1/4 | 73.0×42.4 | 76×38 | 89 |
| 65×25 | 2.1/2×1 | 73.0×33.7 | 76×32 | 89 |
| 80×65 | 3×2.1/2 | 88.9×73.0 | 89×76 | 89 |
| 80×50 | 3×2 | 88.9×60.3 | 89×57 | 89 |
| 80×40 | 3×1.1/2 | 88.9×48.3 | 89×45 | 89 |
| 80×32 | 3×1.1/4 | 88.9×42.4 | 89×38 | 89 |
| 90×80 | 3.1/2×3 | 101.6×88.9 | – | 102 |
| 90×65 | 3.1/2×2.1/2 | 101.6×73.0 | – | 102 |
| 90×50 | 3.1/2×2 | 101.6×60.3 | – | 102 |
| 90×40 | 3.1/2×1.1/2 | 101.6×48.3 | – | 102 |
| 90×32 | 3.1/2×1.1/4 | 101.6×42.4 | – | 102 |
| 100×90 | 4×3.1/2 | 114.3×101.6 | – | 102 |
| 100×80 | 4×3 | 114.3×88.9 | 108×89 | 102 |
| 100×65 | 4×2.1/2 | 114.3×73.0 | 108×76 | 102 |
| 100×50 | 4×2 | 114.3×60.3 | 108×57 | 102 |
| 100×40 | 4×1.1/2 | 114.3×48.3 | 108×45 | 102 |
| 125×100 | 5×4 | 141.3×114.3 | 133×108 | 127 |
| 125×90 | 5×3.1/2 | 141.3×101.6 | – | 127 |
| 125×80 | 5×3 | 141.3×88.9 | 133×89 | 127 |
| 125×65 | 5×2.1/2 | 141.3×73.0 | 133×76 | 127 |
| 125×50 | 5×2 | 141.3×60.3 | 133×57 | 127 |
| 150×125 | 6×5 | 168.3×141.3 | 159×133 | 140 |
| 150×100 | 6×5 | 168.3×114.3 | 159×108 | 140 |
| 150×90 | 6×3.1/2 | 168.3×101.6 | – | 140 |
| 150×80 | 6×3 | 168.3×88.9 | 159×89 | 140 |
| 150×65 | 6×2.1/2 | 168.3×73.0 | 159×76 | 140 |
| 200×150 | 8×6 | 219.1×168.3 | 219×159 | 152 |
| 200×125 | 8×5 | 219.1×141.3 | 219×133 | 152 |
| 200×100 | 8×4 | 219.1×114.3 | 219×108 | 152 |
| 200×90 | 8×3.1/2 | 219.1×101.6 | – | 152 |
| 250×200 | 10×8 | 273.0×219.1 | 273×219 | 178 |
| 250×150 | 10×6 | 273.0×168.3 | 273×159 | 178 |
| 250×125 | 10×5 | 273.0×141.3 | 273×133 | 178 |
| 250×100 | 10×4 | 273.0×114.3 | 273×108 | 178 |
| 300×250 | 12×10 | 323.9×273.1 | 325×273 | 203 |
| 300×200 | 12×8 | 323.9×219.1 | 325×219 | 203 |
| 300×150 | 12×6 | 323.9×168.3 | 325×159 | 203 |
| 300×125 | 12×5 | 323.9×141.3 | 325×133 | 203 |
| 350×300 | 14×12 | 355.6×323.9 | 377×325 | 330 |
| 350×250 | 14×10 | 355.6×273.0 | 377×273 | 330 |
| 350×200 | 14×8 | 355.6×219.1 | 377×219 | 330 |
| 350×150 | 14×6 | 355.6×168.3 | 377×159 | 330 |
| 400×350 | 16×14 | 406.4×355.6 | 426×377 | 356 |
| 400×300 | 16×12 | 406.4×323.9 | 426×325 | 356 |
| 400×250 | 16×10 | 406.4×273.0 | 426×273 | 356 |
| 400×200 | 16×8 | 406.4×219.1 | 426×219 | 356 |
| 450×400 | 18×16 | 457×406.4 | 478×426 | 381 |
| 450×350 | 18×14 | 457×355.6 | 478×377 | 381 |
| 450×300 | 18×12 | 457×323.9 | 478×325 | 381 |
| 450×250 | 18×10 | 457×273.0 | 478×273 | 381 |
| 500×450 | 20×18 | 508×457 | 529×478 | 508 |
| 500×400 | 20×16 | 508×406.4 | 529×426 | 508 |
| 500×350 | 20×14 | 508×355.6 | 529×377 | 508 |
| 500×300 | 20×12 | 508×323.9 | 529×325 | 508 |
| 550×500 | 22×20 | 559×508 | – | 508 |
| 550×450 | 22×18 | 559×457 | – | 508 |
| 550×400 | 22×16 | 559×406.4 | – | 508 |
| 550×350 | 22×14 | 559×355.6 | – | 508 |
| 600×550 | 24×22 | 610×559 | – | 508 |
| 600×500 | 24×20 | 610×508 | 630×529 | 508 |
| 600×450 | 24×18 | 610×457 | 630×478 | 508 |
| 600×400 | 24×22 | 610×406.4 | 630×426 | 508 |
| 650×600 | 26×24 | 660×610 | – | 610 |
| 650×550 | 26×22 | 660×559 | – | 610 |
| 650×500 | 26×20 | 660×508 | – | 610 |
| 650×450 | 26×18 | 660×457 | – | 610 |
| 700×650 | 28×26 | 711×660 | – | 610 |
| 700×600 | 28×24 | 711×610 | 720×630 | 610 |
| 700×550 | 28×22 | 711×559 | – | 610 |
| 700×500 | 28×20 | 711×508 | 720×530 | 610 |
| 750×700 | 30×28 | 762×711 | – | 610 |
| 750×650 | 30×26 | 762×660 | – | 610 |
| 750×600 | 30×24 | 762×610 | – | 610 |
| 750×550 | 30×22 | 762×559 | – | 610 |
| 800×750 | 32×30 | 813×762 | – | 610 |
| 800×700 | 32×28 | 813×711 | 820×720 | 610 |
| 800×650 | 32×26 | 813×660 | – | 610 |
| 800×600 | 32×24 | 813×610 | 820×630 | 610 |
| 850×800 | 34×32 | 864×813 | – | 610 |
| 850×750 | 34×30 | 864×762 | – | 610 |
| 850×700 | 34×28 | 864×711 | – | 610 |
| 850×650 | 34×26 | 864×660 | – | 610 |
| 900×850 | 36×34 | 914×864 | – | 610 |
| 900×800 | 36×32 | 914×813 | 920×820 | 610 |
| 900×750 | 36×30 | 914×762 | – | 610 |
| 900×700 | 36×28 | 914×711 | 920×720 | 610 |
| 950×900 | 38×36 | 965×914 | – | 610 |
| 950×850 | 38×34 | 965×864 | – | 610 |
| 950×800 | 38×32 | 965×813 | – | 610 |
| 950×750 | 38×30 | 965×762 | – | 610 |
| 1000×950 | 40×38 | 1016×965 | – | 610 |
| 1000×900 | 40×36 | 1016×914 | 1020×920 | 610 |
| 1000×850 | 40×34 | 1016×864 | – | 610 |
| 1000×800 | 40×32 | 1016×813 | 1020×820 | 610 |
| 1050×1000 | 42×40 | 1067×1016 | – | 610 |
| 1050×950 | 42×38 | 1067×965 | – | 610 |
| 1050×900 | 42×36 | 1067×914 | – | 610 |
| 1050×850 | 42×34 | 1067×864 | – | 610 |
| 1100×1050 | 44×42 | 1118×1067 | – | 610 |
| 1100×1000 | 44×40 | 1118×1016 | 1120×1020 | 610 |
| 1100×950 | 44×38 | 1118×965 | – | 610 |
| 1100×900 | 44×36 | 1118×914 | 1220×920 | 610 |
| 1150×1100 | 46×44 | 1168×1118 | – | 711 |
| 1150×1050 | 46×42 | 1168×1067 | – | 711 |
| 1150×1000 | 46×40 | 1168×1016 | – | 711 |
| 1150×950 | 46×38 | 1168×965 | – | 711 |
| 1200×1150 | 48×46 | 1220×1168 | – | 711 |
| 1200×1100 | 48×44 | 1220×1118 | 1220×1120 | 711 |
| 1200×1050 | 48×42 | 1220×1067 | – | 711 |
| 1200×1000 | 48×40 | 1220×1016 | 1220×1020 | 711 |
What’s the difference between CONCENTRIC REDUCER и ECCENTRIC REDUCER ?
CONCENTRIC REDUCER
The open ends of a concentric reducer are aligned and centered one to the other. В целом, this type of pipe reducer is used to modify the bore size of the pipeline by two (maximum three) measures, to avoid an excessive pressure drop in the pipeline.
If a larger reduction is needed, then a sequence of reducers shall be used to have a smooth and gradual adjustment of the pipeline bore size (vs. a drastic change).
For small bore size reductions, reducing flanges may be an alternative to buttweld reducers.
ECCENTRIC REDUCERThe open ends of an eccentric reducer are in an “offset” position one to the other.
Eccentric reducers are used, generally, for pipelines installed in a horizontal position (whereas concentric reducers are used for pipelines installed vertically or for the inlets of suction pumps, as top flat eccentric reducers).
PIPE REDUCERS MANUFACTURING PROCESS
CONCENTRIC VS ECCENTRIC REDUCER
The key difference between concentric vs eccentric reducer is the centricity of the inlet vs. the outlet of the fitting, which is perfect for a concentric reducer and offset of an eccentric reducer.

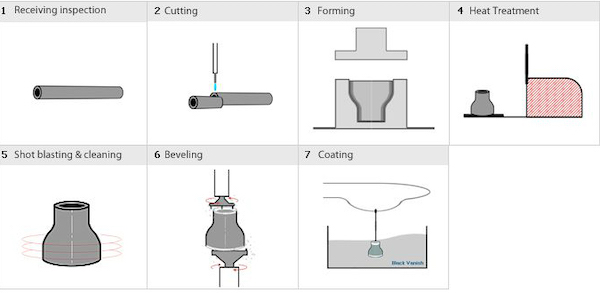

BW REDUCER MANUFACTURING PROCESS
Cold forming is the most common manufacturing process for seamless eccentric/concentric reducers (welded reducers are produced with the single or double seam weld process):
